Installing on Pro/Pharma Units

Reference the cartridge-style internals used on newer Harvest Right Pro and 2023 Pharma units.

Original Notion source

Current documentation status

We’re still in the process of building out detailed documentation for the new 2023 units, which utilize a new cartridge style housing internally.

Cartridge variants

There are two different types of cartridge designs for the Harvest Right Pros and 2023 Pharma units.

  • One is uncovered and allows easy access to the ribbon cable.
  • The other is covered, making access to the ribbon cable tighter.
HashyLink cable for Home/Pharma Pro Shows the HashyLink cable path on a Home/Pharma Pro cartridge.

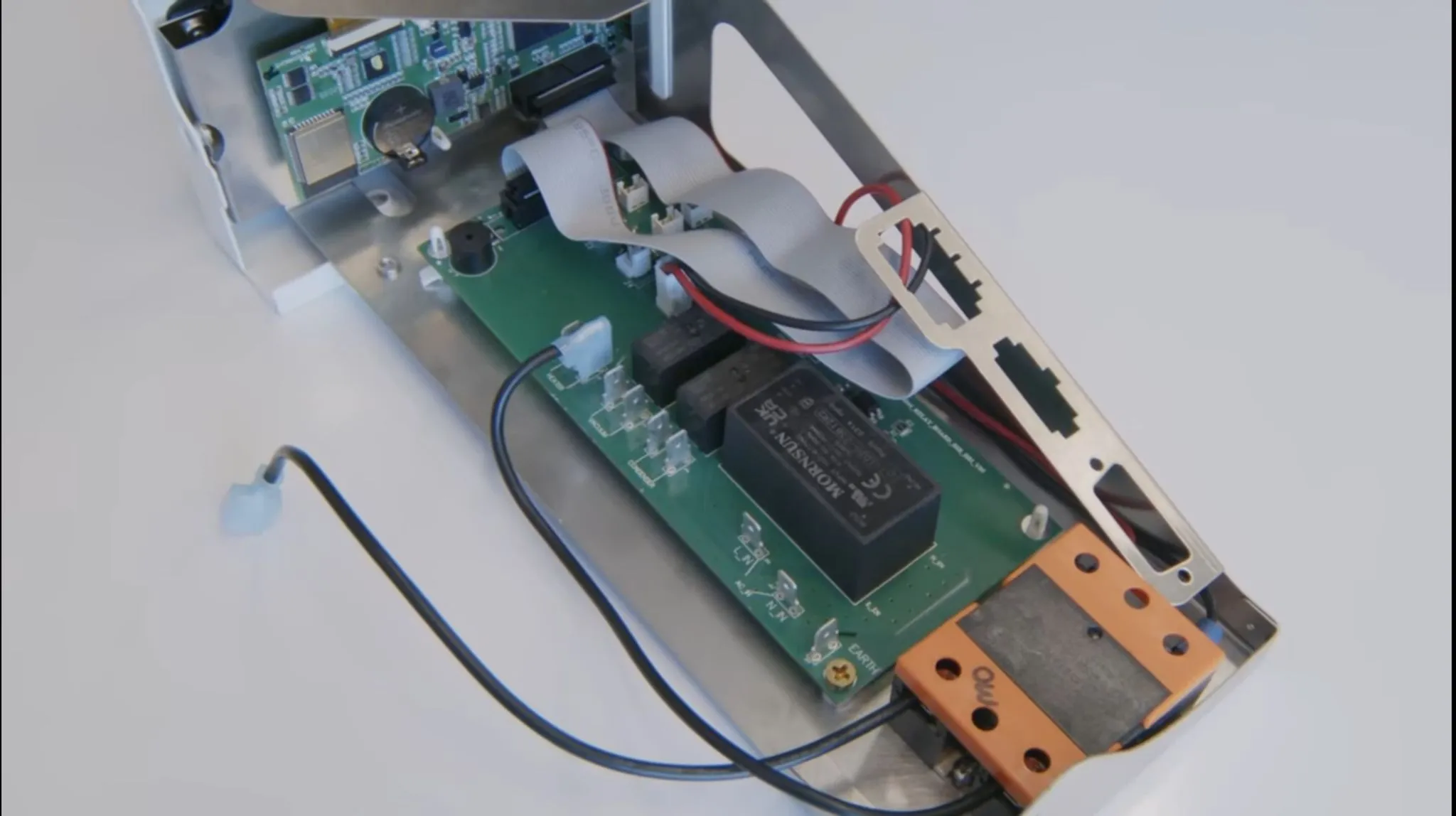

Uncovered cartridge style inside a Pro or Pharma freeze dryer
Variant 1: small/medium Pro and Pharma

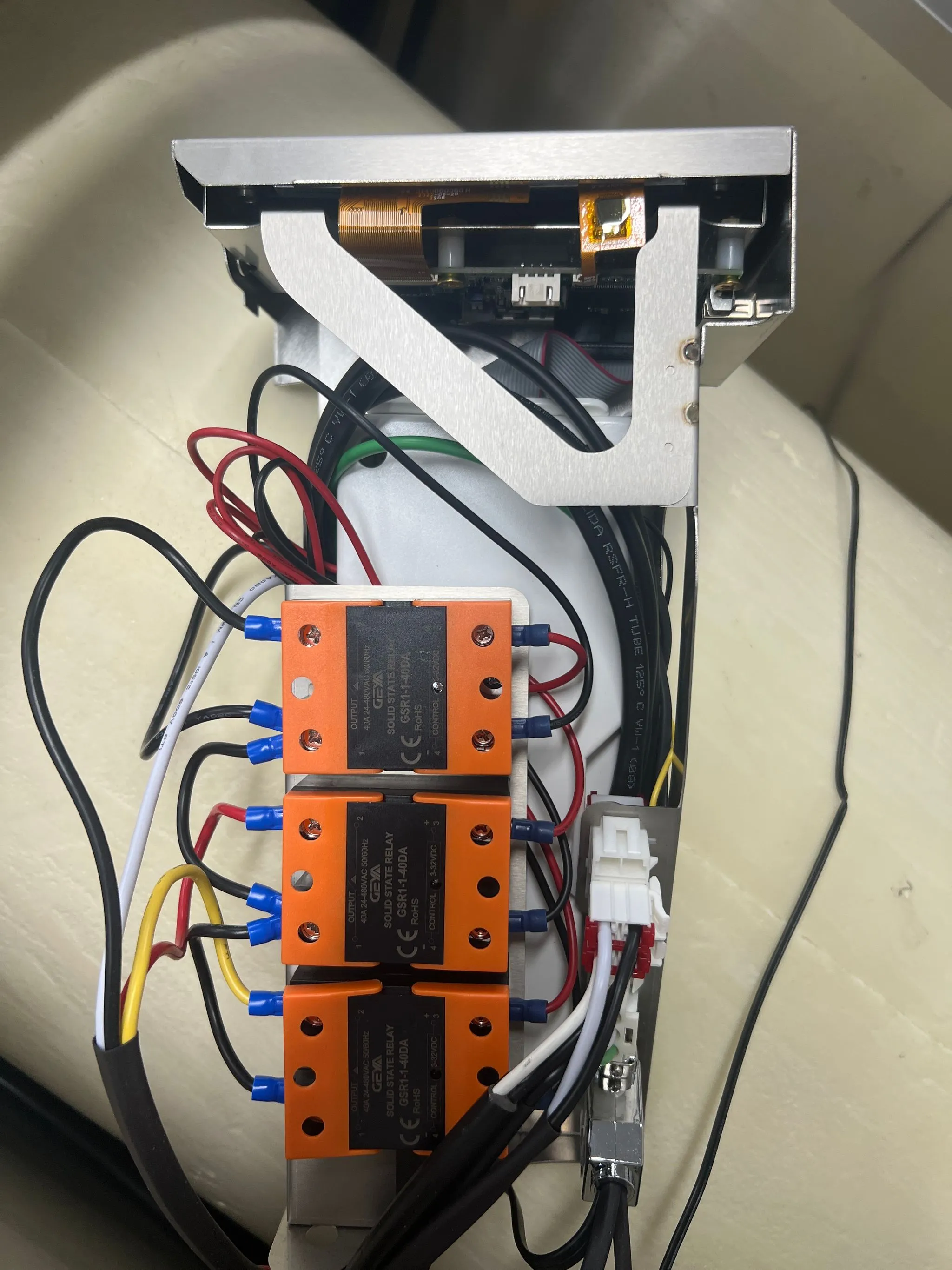

Covered cartridge style inside a Pro or Pharma freeze dryer
Variant 2: large/XL Pro and Pharma

Protective covering videos

Use these short clips as a visual reference for removing the protective covering on covered cartridge-style units.

Protective covering removal 1 First angle for loosening the protective covering.
Protective covering removal 2 Second angle for clearing the cover.
Protective covering removal 3 Close-up of the final access area.
